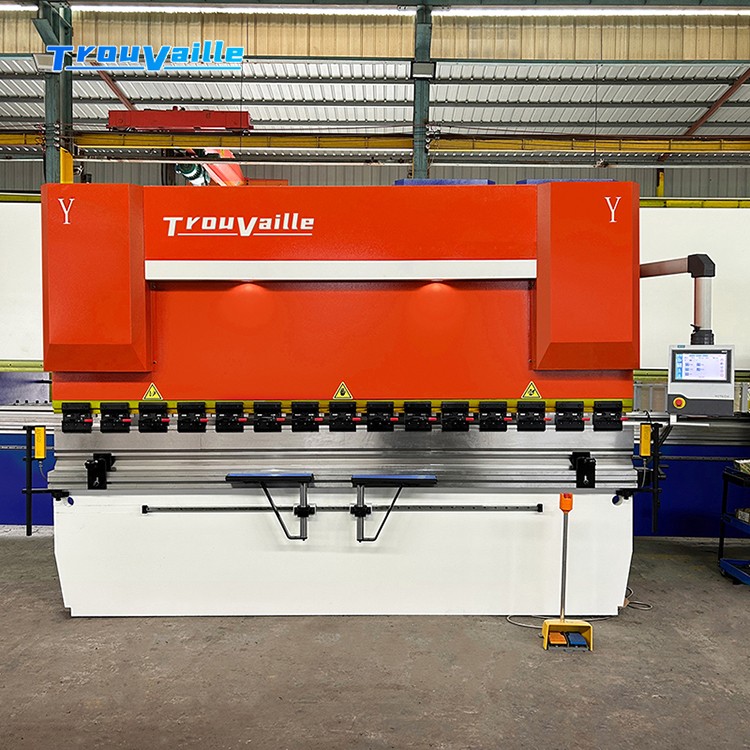

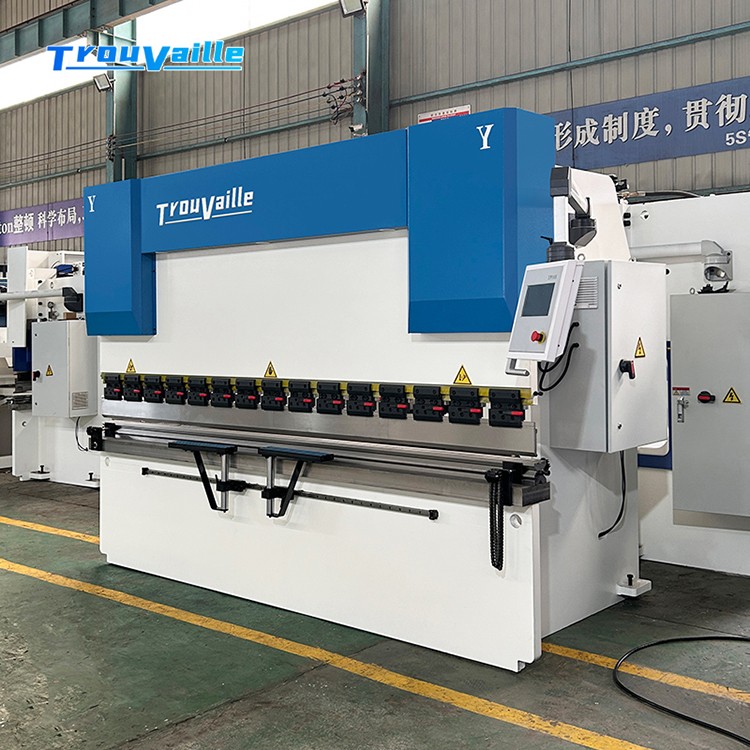

NC Press Brake

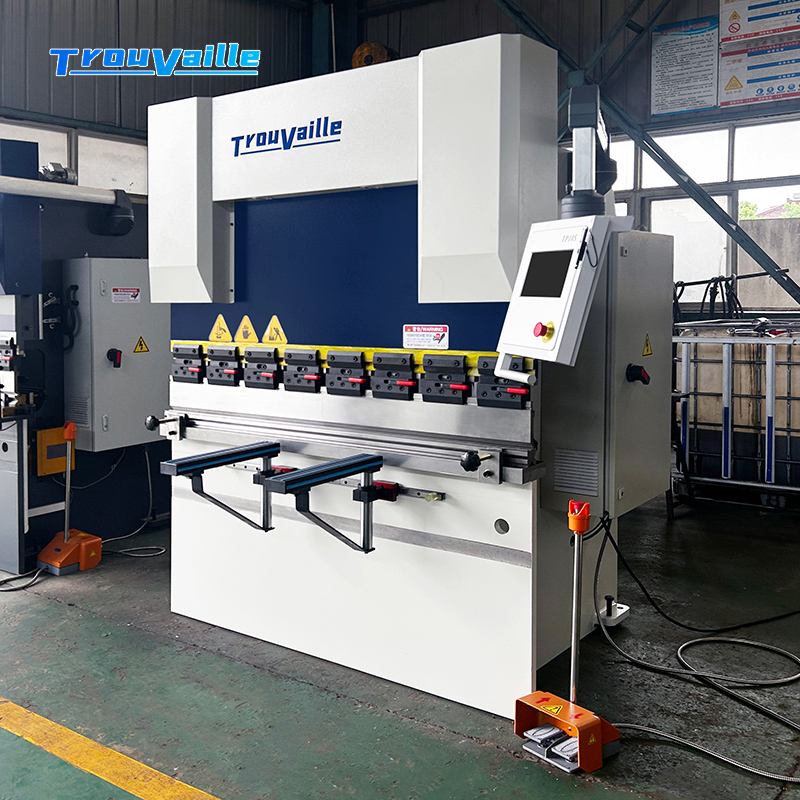

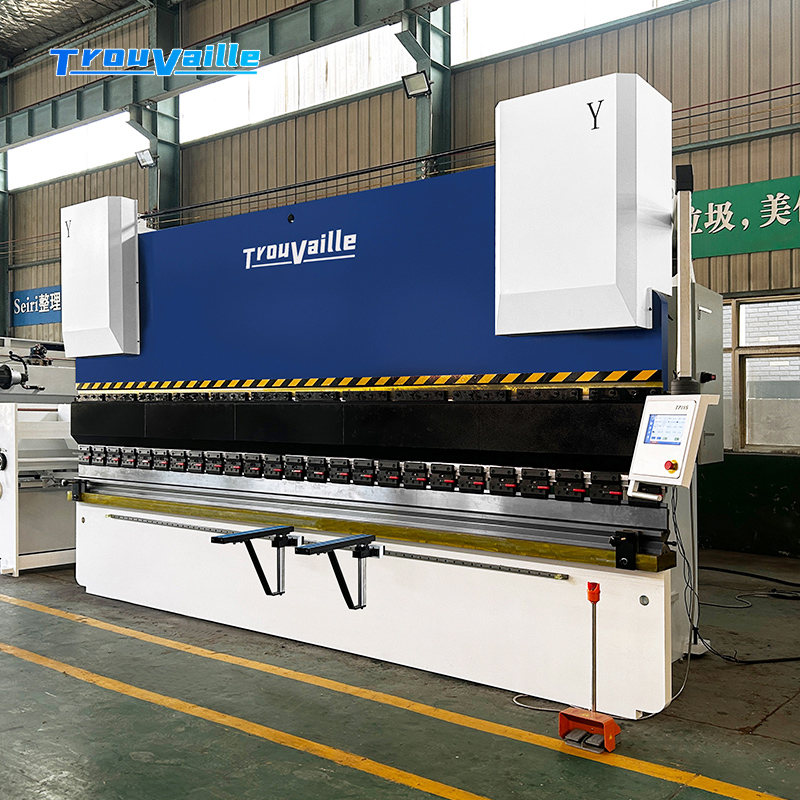

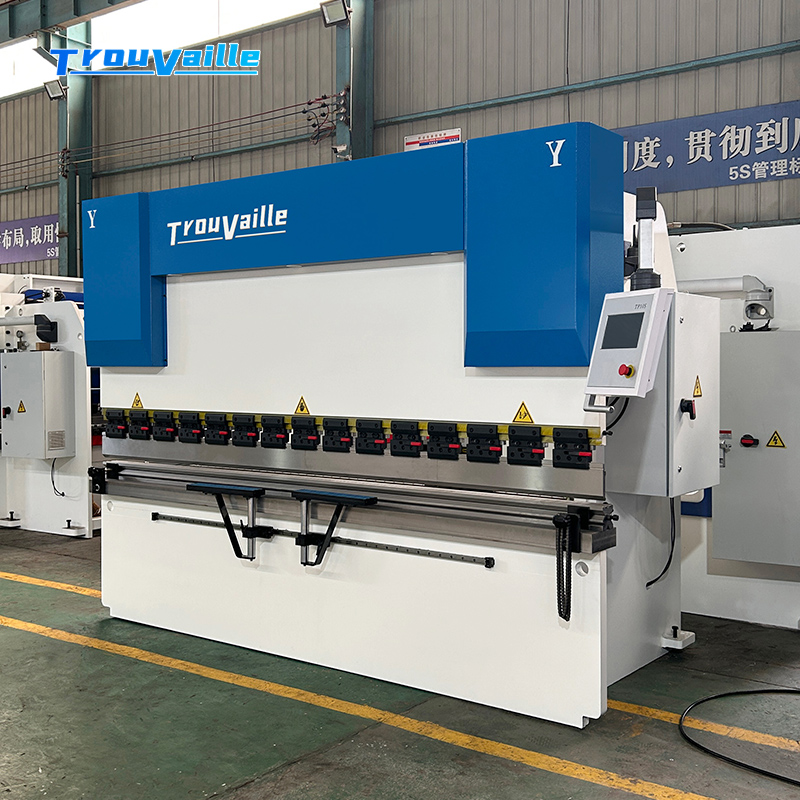

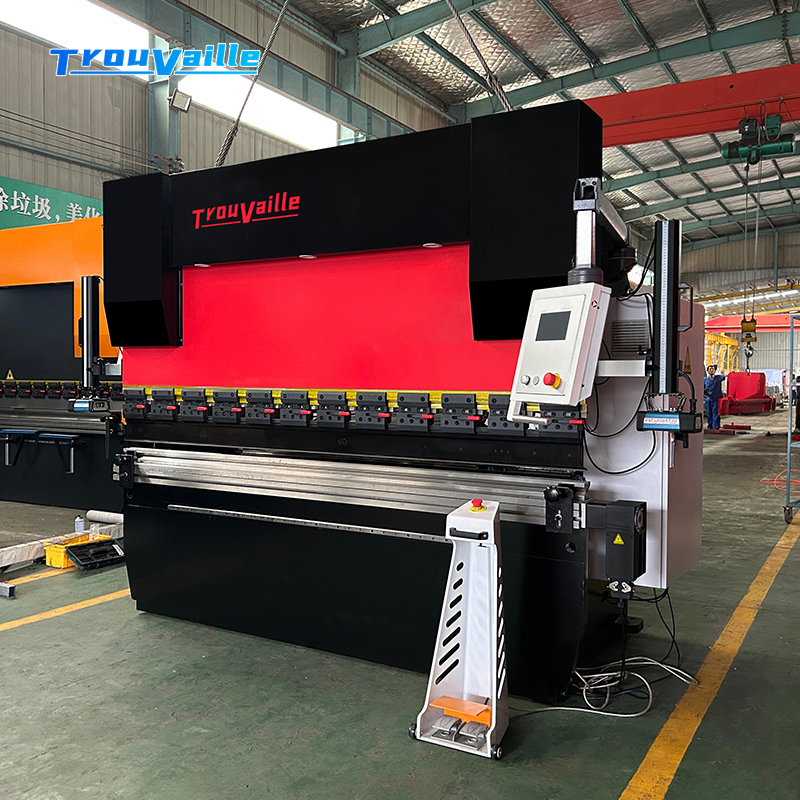

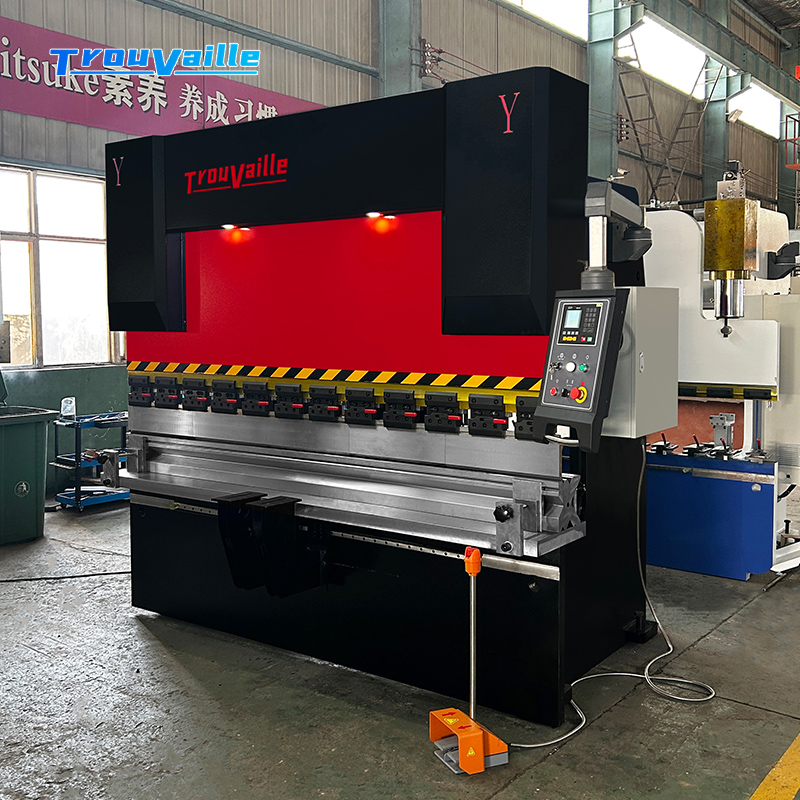

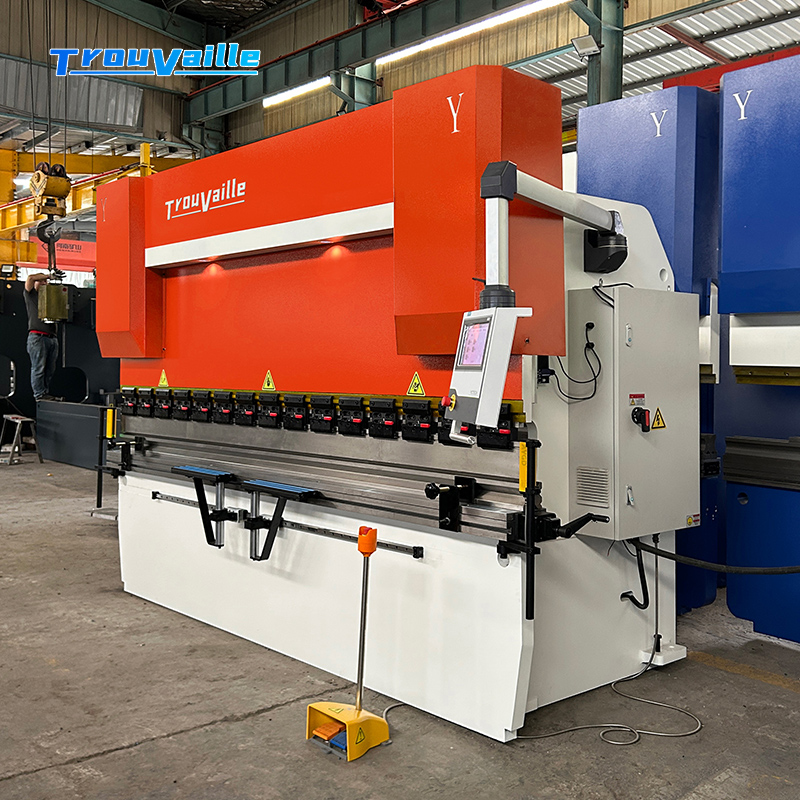

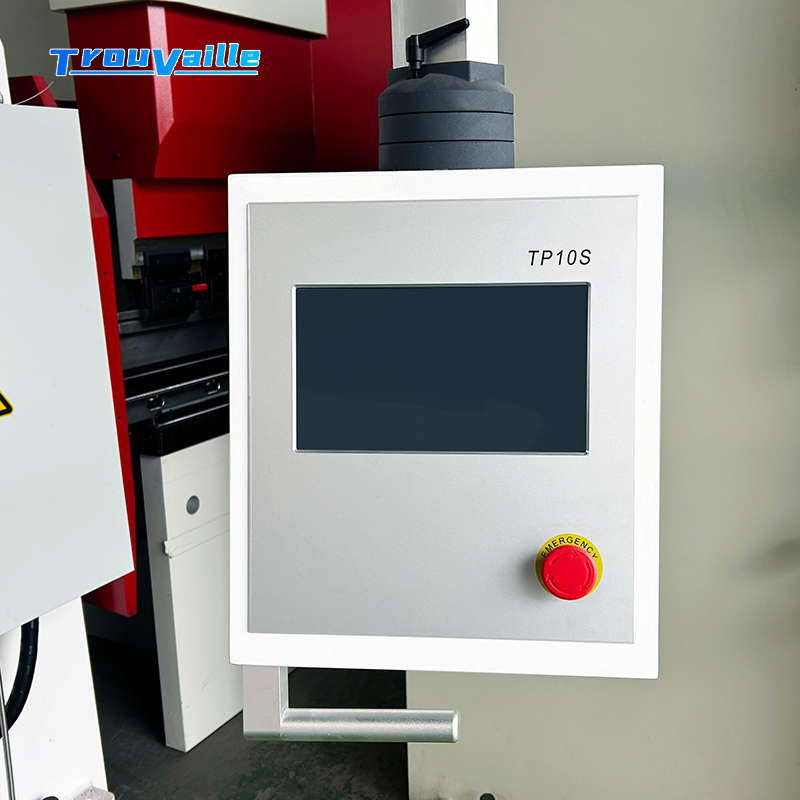

Model：100T-2500-E21，100T-2500-E21，125T-3200E310P，200T-5000-TP10S，TW40T-1600-TP10S，TW70T-2500-CT8，160-3200-TP10S

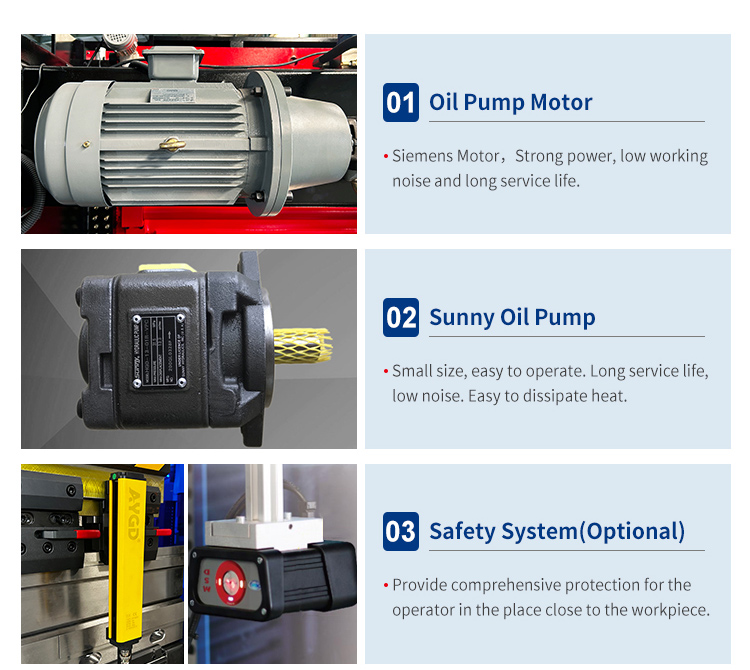

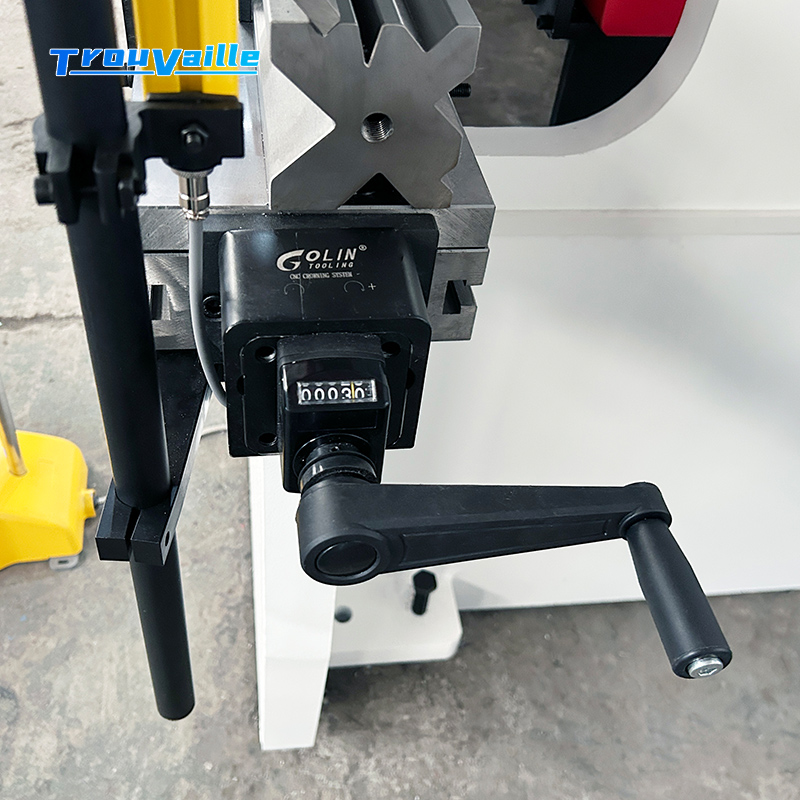

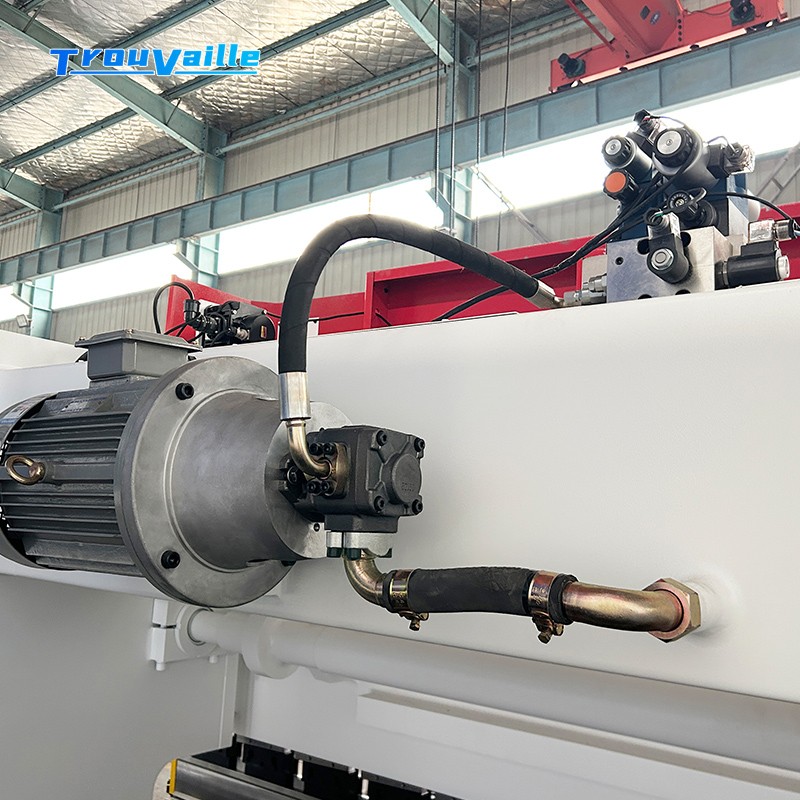

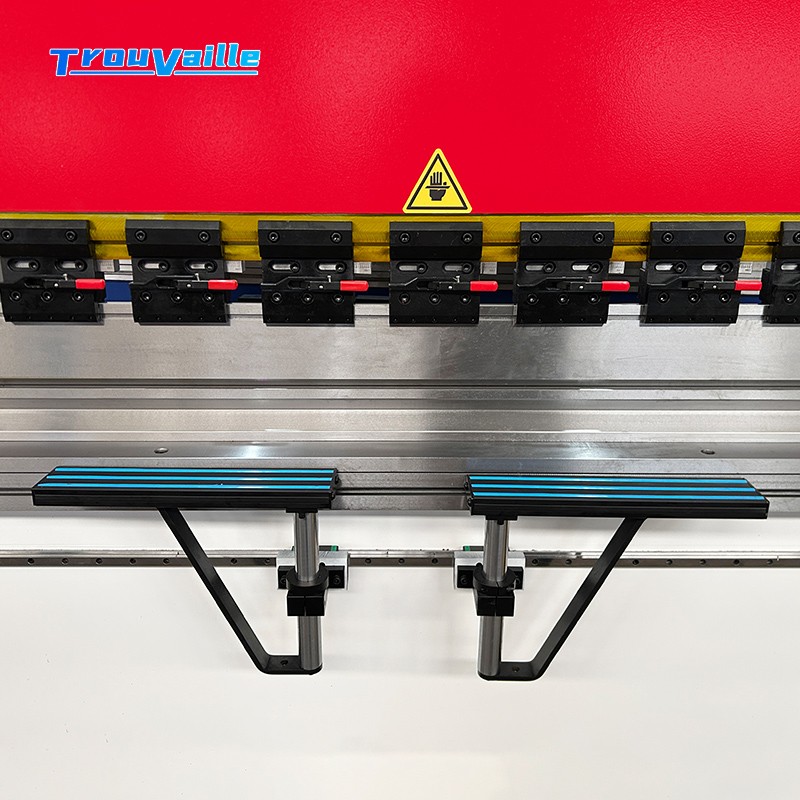

NC press brake combines a heavy-duty welded frame with torsion-bar synchronisation to maintain consistent ram parallelism across the full bending length. A servo-driven backgauge with digital readout facilitates accurate positioning, while the user-friendly numeric controller stores angle parameters for rapid job recall. Manual fine-tuning of stroke depth accommodates material thickness variations without complex reprogramming. The hydraulic system delivers smooth pressing force, with built-in relief valves guarding against overload. Quick-release tool clamps and removable die holders shorten setup times between different profiles.

Inquiry now

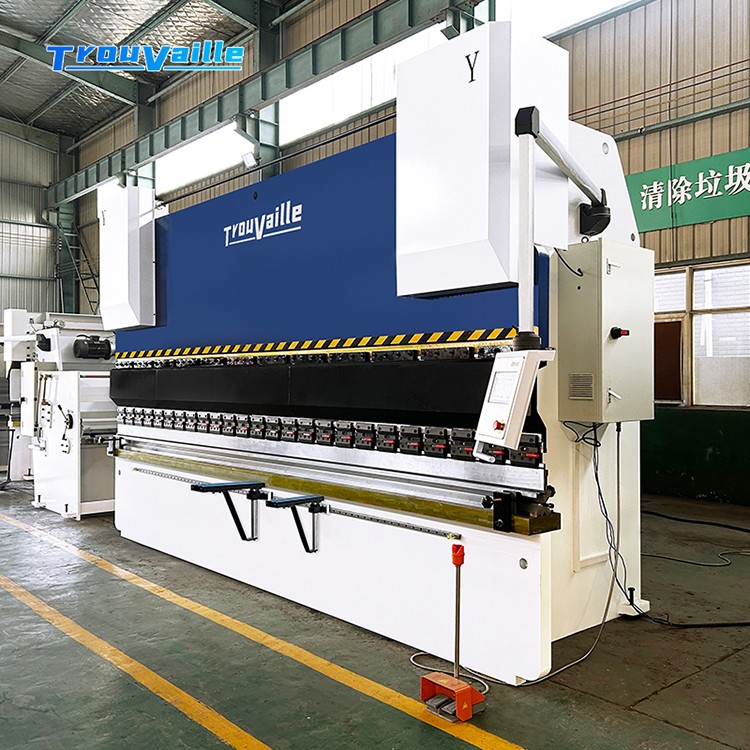

NC Press Brake

In sheet metal fabrication, the NC Press Brake serves as a cost-effective numerical control bending solution, combining reliable hydraulic drive with a user-friendly NC backgauge system to deliver high value for money. Unlike manual press brakes, this model enables rapid backgauge positioning via digital control, significantly reducing manual measuring and trial bends while retaining the proven stability of hydraulic power.

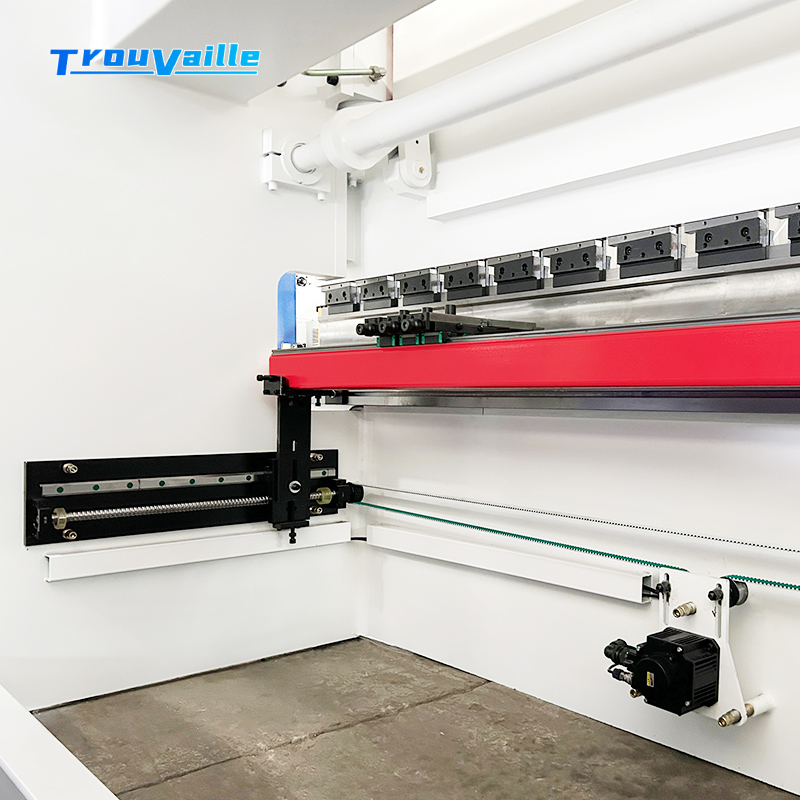

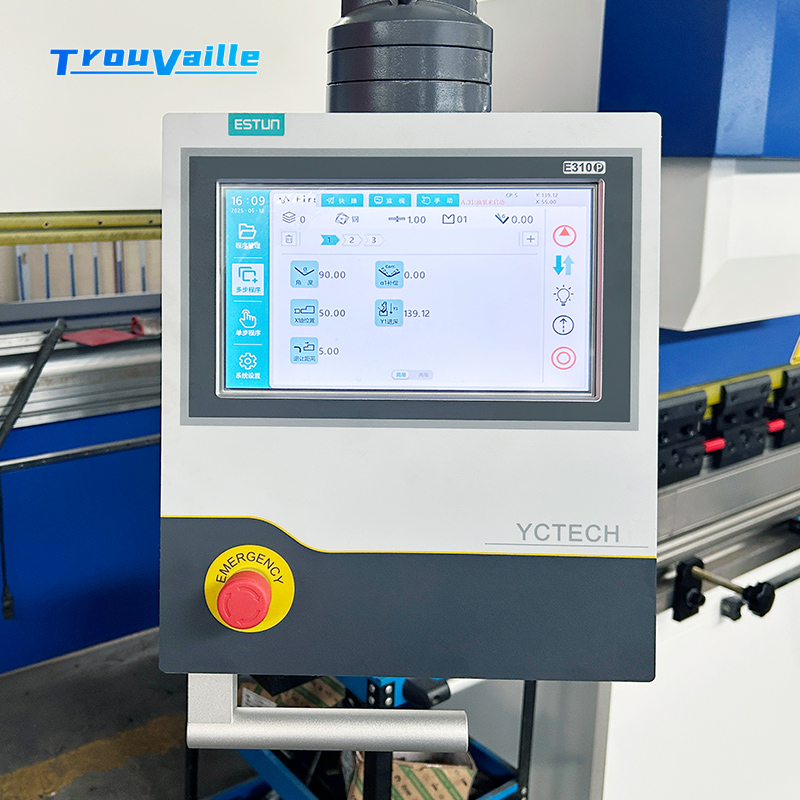

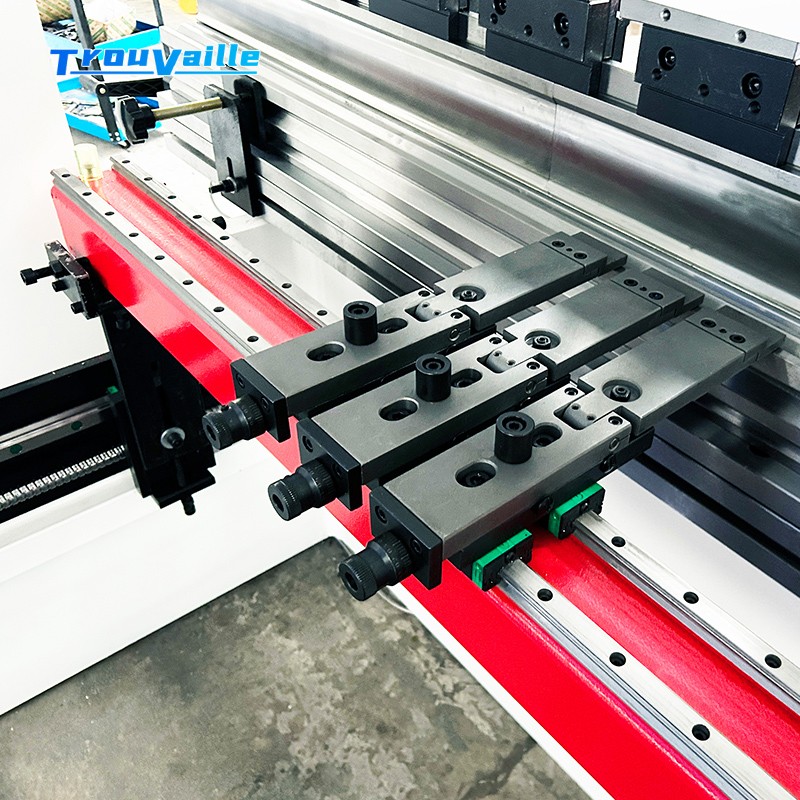

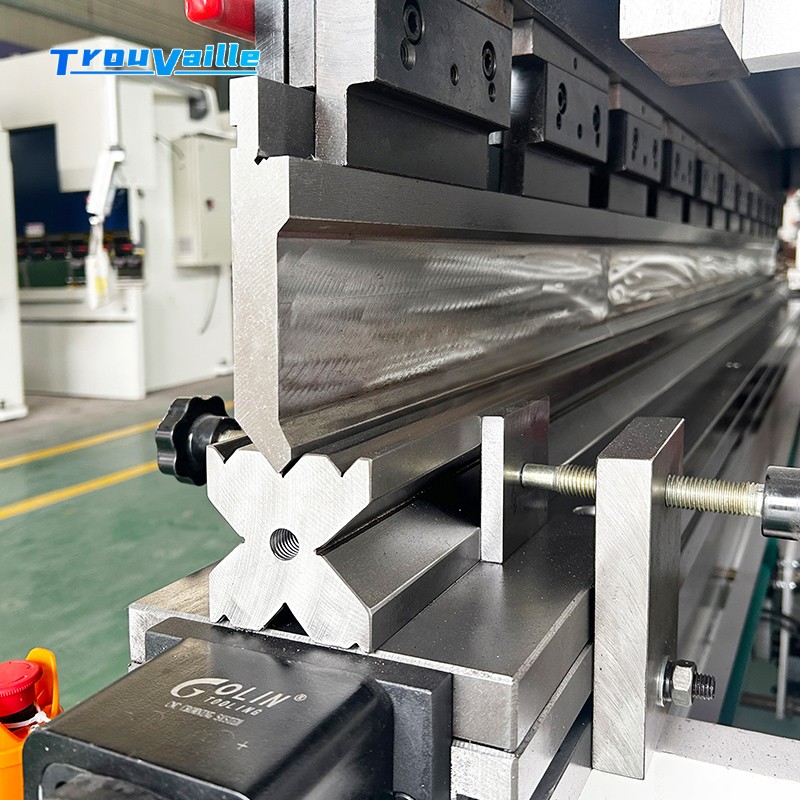

Key advantages include: an intuitive control panel that allows ordinary operators to become proficient after minimal training; a high-precision ballscrew and servo-driven backgauge achieving positioning accuracy within ±0.1mm with excellent repeatability; manual or electric ram stroke adjustment, paired with a mechanical torsion‑bar synchronization mechanism for consistent angle balance across the workpiece; and a robust welded frame with stress-relief annealing to resist deflection and ensure long-term precision. Quick‑die‑change clamps further shorten setup time, making the NC Press Brake ideal for high‑mix, low‑volume production.

Typical applications span electrical cabinets, telecom enclosures, ventilation ducts, stainless steel decorative panels, agricultural machinery covers, and automotive repair parts—especially suited for small to medium workshops or as supplementary equipment in large production lines.
